Product Overview：

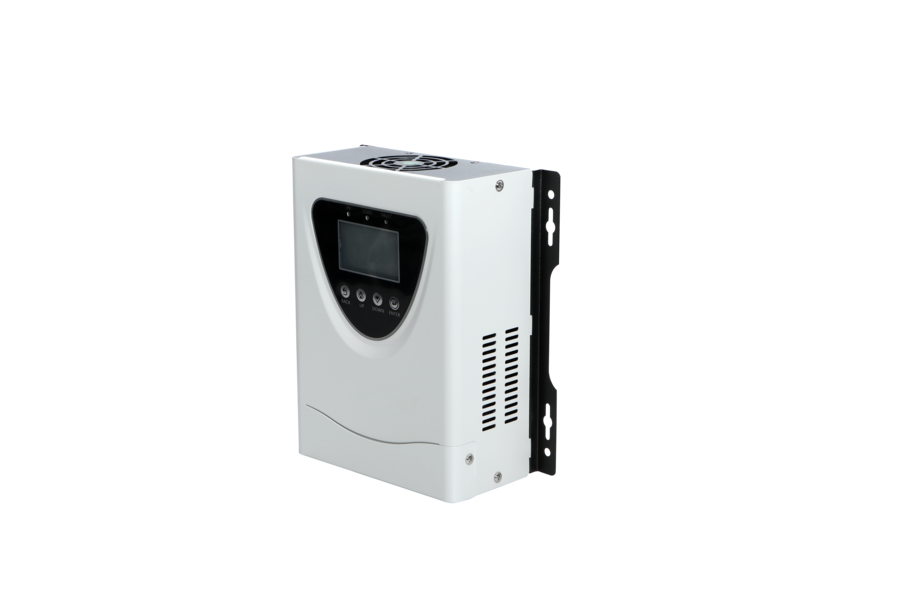

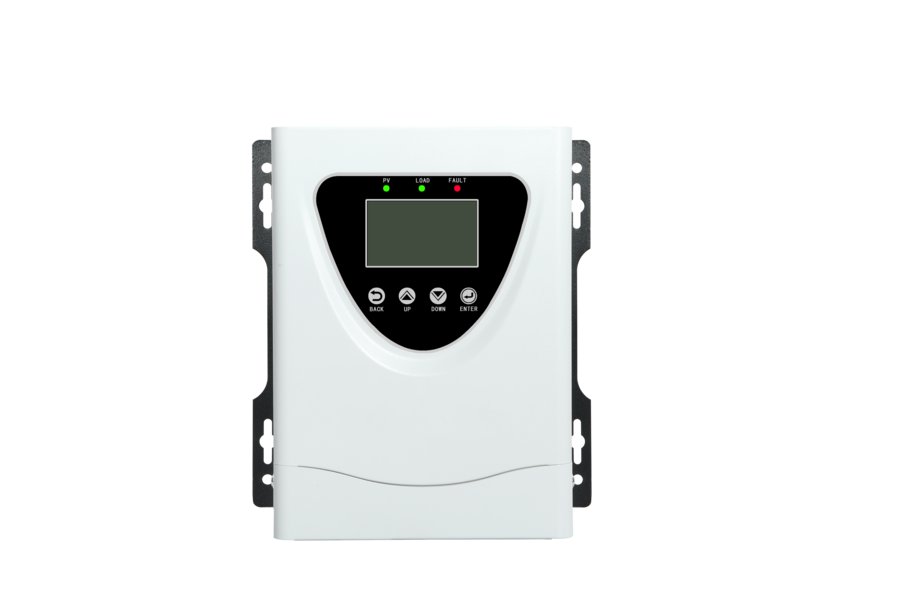

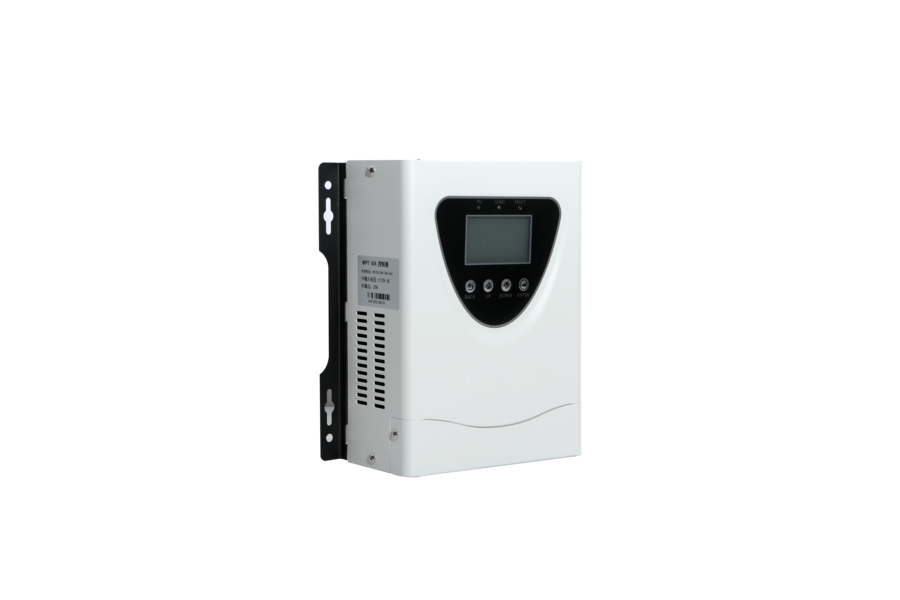

The Smart-Track Series MPPT Solar Charge Controller is a premium photovoltaic (PV) power regulator engineered to maximize energy harvesting from solar panel arrays. Driven by an ultra-fast Maximum Power Point Tracking (MPPT) algorithm, it achieves a peak tracking efficiency of ≥96%, ensuring responsive and reliable power generation even under rapidly changing weather conditions. Utilizing an adaptive 3-stage charging methodology (Constant Current, Constant Voltage, and Float), this independent solar controller systematically optimizes battery bank performance while significantly extending overall service life.
Key Features & Technical Highlights：
Advanced MPPT Tracking Algorithm: Delivers an exceptional controller tracking efficiency of ≥96%, significantly minimizing power loss from your PV modules compared to traditional regulators.
Adaptive 3-Stage Smart Charging: Automatically executes Bulk (Constant Current), Absorption (Constant Voltage), and Float charging cycles to ensure safe, complete, and efficient battery replenishment
Multi-Battery Chemistry Integration: Pre-programmed for seamless compatibility with Sealed Lead-Acid, Gel, Lithium Iron Phosphate (LiFePO₄), and Ternary Lithium battery banks. It also features a fully customizable menu for user-defined charging parameters.
Intelligent Current-Limiting Protection: When the connected solar array power exceeds the threshold, the regulator automatically throttles input to maintain rated charging current limits, preventing damage from over-wattage.

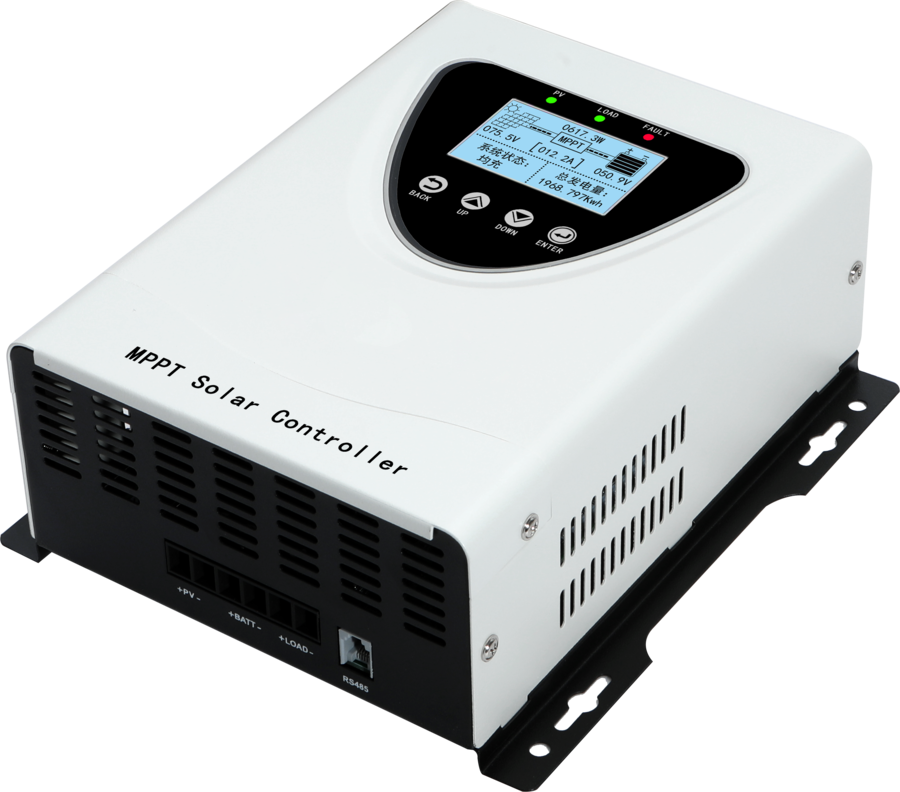

High-Definition LCD Matrix Screen: Provides a crystal-clear, real-time dashboard displaying system operating parameters, diagnostic statuses, and cumulative solar power generation statistics (kWh).
Industrial RS485 Communication Port: Equipped with a standard RS485 serial communication bus interface, allowing effortless system integration, remote monitoring, and centralized data management.
Comprehensive Diagnostic Array: Built-in safeguards against DC load overload, module over-temperature, PV over-voltage, and reverse-polarity faults with clear on-screen troubleshooting codes.
Technical Specification Highlights：
Controller Type: Stand-alone Maximum Power Point Tracking (MPPT)
Peak Conversion Efficiency: ≥96%
Charging Profiles: Constant Current, Constant Voltage, Float (3-Stage)
Supported Battery Types: Lead-Acid, Gel, LiFePO₄, Ternary Lithium, User-Customized
Maximum PV Input Voltage: DC 190V (Working) / DC 200V (Open Circuit)
Data Interface Protocol: RS485 Serial Communication
Operating Ambient Temperature: -20°C to 50°C
